Understanding the Connector Conundrum

1. A Quick Look at RF Connectors

Ever stared at the back of a radio, oscilloscope, or some other electronic device and wondered about all those little metal plugs? You're not alone! Radio frequency (RF) connectors can seem like a secret language, but understanding them is key to getting your signals where they need to go. Today, we're tackling two popular types: SMA and BNC connectors. They both do a similar job, but they go about it in very different ways. Think of it as the difference between using a Phillips head versus a flat head screwdriver both tighten screws, but you need the right one for the job!

Its easy to get lost in a sea of technical specifications, so let's break it down in a way that's easy to digest. Forget complicated jargon for now; we'll focus on what matters in the real world. Which one is easier to use? Which one is better for high frequencies? And most importantly, which one do you need for your particular project?

These connectors are everywhere. From connecting antennas to handheld radios, to linking test equipment in labs, they're the unsung heroes of the RF world. But picking the wrong one can lead to signal loss, damage to your equipment, or just plain frustration. So, let's get started!

Consider this a friendly guide to navigate the world of SMA and BNC. By the end, you'll be able to tell them apart, understand their strengths and weaknesses, and confidently choose the right connector for your needs. No more connector confusion!

Difference Between BNC Connector And SMA

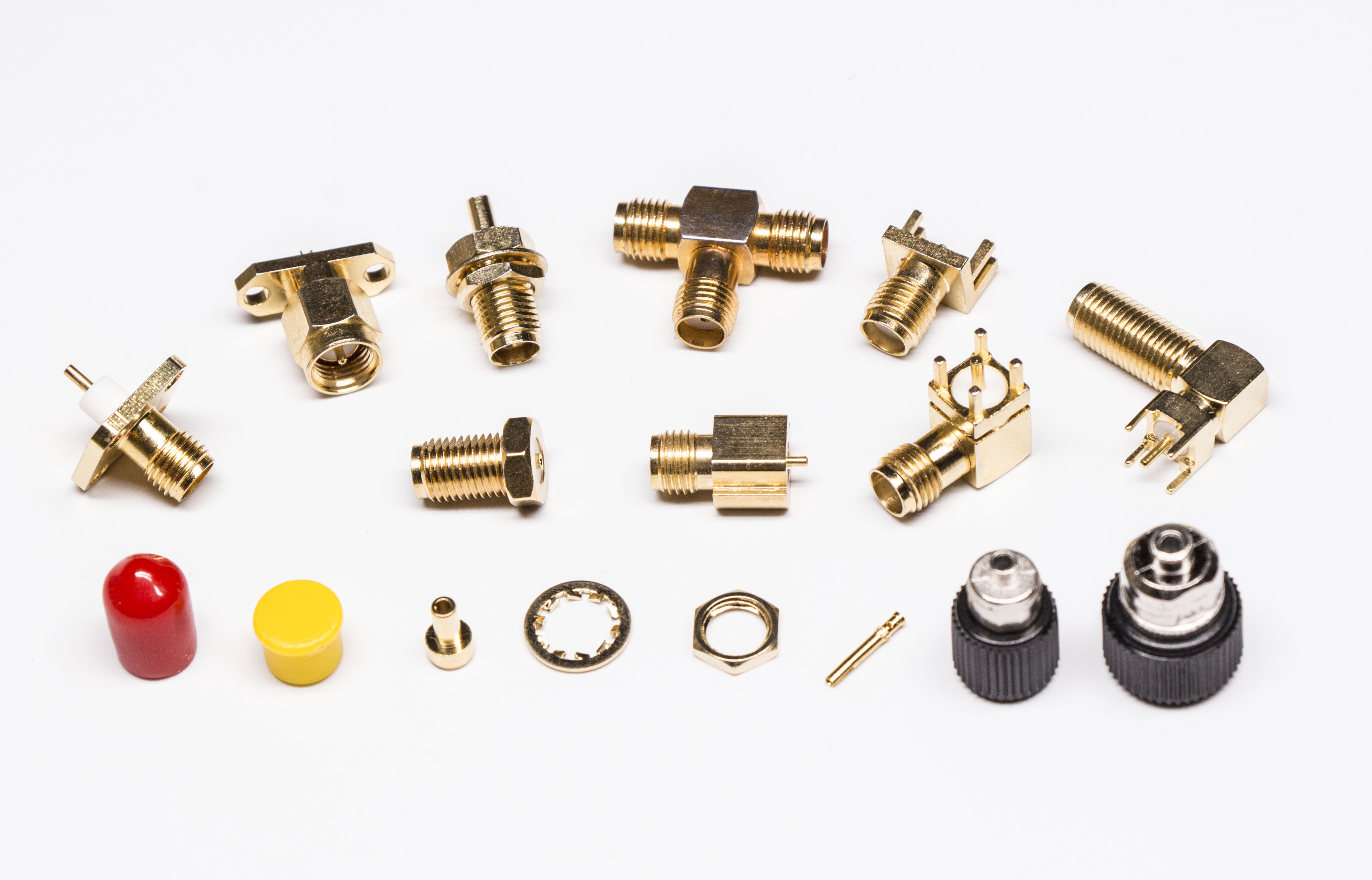

SMA Connectors

2. The Precision Performer

SMA connectors (SubMiniature version A) are known for their compact size and ability to handle high frequencies. They're typically screw-on connectors, offering a secure and reliable connection. This screw-on design is important for maintaining signal integrity, especially when dealing with sensitive signals or high frequencies. Imagine trying to hold a firehose nozzle steady; you need a firm grip, and SMA connectors provide that for radio waves.

Think of SMAs as the sprinters of the connector world — small, fast, and precise. They excel in applications where space is limited and performance is critical. You'll often find them in Wi-Fi antennas, GPS devices, and various test and measurement equipment. They're the go-to choice when you absolutely, positively need a clean signal at a high frequency.

One of the things that makes SMAs special is their construction. They're designed to maintain a consistent impedance, typically 50 ohms. This is crucial for minimizing signal reflections, which can degrade performance. Its like having a perfectly smooth road for your radio waves to travel on, ensuring they arrive at their destination without any bumps or detours.

However, their screw-on nature means they're not the quickest to connect and disconnect. If you need to frequently swap connections, SMA might not be the most convenient option. It's a bit like fastening a tiny nut with a wrench every time you want to connect or disconnect. It's secure, but not exactly speedy. And you need to be careful not to overtighten them. Stripped threads are a sad, sad thing.

Choosing The Right Connector A Guide To BNC, TNC, SMA, MCX, MMCX, And

BNC Connectors

3. Easy Does It

BNC connectors (Bayonet Neill-Concelman) are known for their quick connect/disconnect mechanism. They use a bayonet-style locking system, meaning you simply push and twist to secure the connection. This makes them incredibly convenient for applications where you need to frequently change connections. Think of BNCs as the power drill of the connector world; quick, easy, and efficient.

BNCs are often found in test equipment, video equipment, and older networking devices. They're the workhorses of the connector world, reliable and easy to use. The bayonet mechanism is a marvel of engineering simplicity; it provides a secure connection without the need for tools or excessive fiddling.

While BNCs are super convenient, they're not typically used for the highest frequency applications. Their performance tends to degrade at higher frequencies compared to SMAs. Theyre more like a reliable sedan than a sports car. Theyll get you where you need to go, but not necessarily at top speed or with ultimate precision.

Also, BNC connectors tend to be larger than SMA connectors. This can be a factor in applications where space is limited. If you're trying to cram a bunch of connectors onto a small panel, BNCs might not be the best choice. Think of it as trying to park a minivan in a compact parking space — it can be done, but it's not ideal.

The Difference Between SMB And SMA Connector Dosin Electronics

Key Differences Summarized

4. Head-to-Head Comparison

Okay, let's put these two connectors head-to-head and highlight the key differences. We've already touched on some of these, but a quick recap will help solidify your understanding. Think of this as a cheat sheet for connector selection. No need to memorize everything, just keep these key points in mind.

Frequency: SMA connectors generally perform better at higher frequencies than BNC connectors. If you're dealing with signals above a few GHz, SMA is usually the better choice. Imagine SMA as the specialized high-frequency chef, carefully crafting each signal to perfection. While BNC is a reliable cook, it might not excel at such delicate dishes.

Connection Method: SMA connectors use a screw-on connection, while BNC connectors use a bayonet-style quick connect. This makes BNCs much faster and easier to connect and disconnect. In a busy lab environment, this can save a ton of time. SMA's screw-on connection is more secure, though, making it less prone to accidental disconnections.

Size: SMA connectors are typically smaller than BNC connectors. This can be a significant advantage in applications where space is limited. If you're designing a small device, SMA connectors might be the only option that fits. Remember, every millimeter counts when space is at a premium.

Applications: SMAs are commonly used in Wi-Fi antennas, GPS devices, and test equipment where high frequency performance is crucial. BNCs are frequently found in test equipment, video equipment, and older networking devices where ease of use is paramount. Choose the right tool for the right job!

What Is BNC Connector And Cable? Shine Industry

Making the Right Choice

5. Matching Connectors to Applications

So, which connector should you choose? The answer, as always, depends on your specific needs. Consider the following factors when making your decision. Think of it as a choosing the right pair of shoes — comfortable, functional, and suitable for the occasion.

Frequency Requirements: If you're working with high-frequency signals (above a few GHz), SMA is generally the better choice. If your frequencies are lower, BNC might be sufficient and offer the added convenience of quick connect/disconnect. Know your signal range and select accordingly. Ignoring frequency requirements is like trying to drive a car with square wheels — not going to work very well.

Connection Frequency: If you need to frequently connect and disconnect the connector, BNC is the clear winner. If you only need to connect it once in a while, the more secure SMA connection might be preferable. Think about how often you plan to change connections. The right choice can save you a lot of time and frustration.

Space Constraints: If space is limited, SMA connectors offer a more compact solution. If space is not a concern, BNCs are perfectly acceptable. Carefully consider your size limitations when making your decision. Don't try to force a connector into a space it doesn't fit; that's a recipe for disaster.

Cost: While the cost difference is usually minimal, BNC connectors are often slightly less expensive than SMA connectors. If you're on a tight budget, this might be a factor. But remember, performance and reliability are usually worth paying a little extra for. Don't cheap out on connectors if it compromises your project.

Difference Between Sma And Bnc Connector At Lula Meyers Blog

Frequently Asked Questions (FAQs)

6. Your Connector Questions Answered

Got more questions? No problem! Here are some frequently asked questions about SMA and BNC connectors to further clarify things.

Q: Can I use an SMA connector in place of a BNC connector, or vice versa?
A: Generally, no. They are different types of connectors with different interfaces. You would need an adapter, and even then, it's not always ideal due to potential signal degradation. Mixing and matching without proper adaptation is like trying to fit a square peg in a round hole — it won't work without some serious modifications.

Q: What does impedance mean, and why is it important?
A: Impedance is a measure of opposition to the flow of alternating current (AC). In RF systems, it's crucial to maintain a consistent impedance (usually 50 ohms) to minimize signal reflections and maximize power transfer. Think of impedance as the width of a pipe; if the pipe suddenly narrows or widens, the flow of water will be disrupted, creating backpressure and inefficiency.

Q: Are there different types of SMA and BNC connectors?
A: Yes! There are various types of both SMA and BNC connectors, including male and female versions, different mounting styles (e.g., PCB mount, cable mount), and different impedance ratings. Always make sure you're using the correct type for your application. Not all connectors are created equal. For example, reverse polarity SMA (RP-SMA) connectors have a reversed gender of the center pin and are commonly used in Wi-Fi applications.
